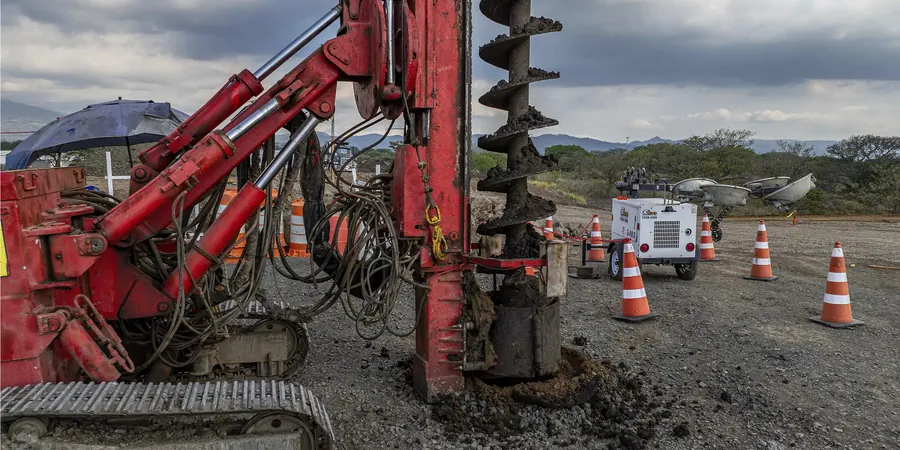

Gisborne’s urban core and port infrastructure sit squarely on the Poverty Bay flats, where the Waipaoa River has deposited deep sequences of Holocene alluvium — interbedded silts, loose sands, and soft clays that can reach thicknesses of 30 metres or more before encountering competent bearing strata. These soils are particularly susceptible to liquefaction and cyclic softening during a large earthquake, which makes ground improvement a prerequisite for most medium-to-large commercial projects. Stone column design offers a proven path to densify the granular fraction, accelerate drainage of excess pore pressures, and transfer structural loads through a composite ground mass. Because the bay is also exposed to high groundwater tables — often within 1.5 m of the surface — installation sequencing and pre-drilling through crust layers demand careful planning. The team correlates site-specific CPT data with NZGS Module 4 liquefaction triggers to tailor column spacing, diameter, and depth, ensuring that post-treatment settlement remains within tolerable limits for the intended structure.
A well-designed stone column grid can reduce post-liquefaction settlement by 60–80 % when the granular fraction of the soil exceeds 15 %, turning marginal ground into buildable land.
Technical details of the service in Gisborne
Demonstration video
Local geotechnical conditions in Gisborne
Gisborne’s low-lying commercial strips developed rapidly after the harbour improvements of the 1960s, often on fill placed over estuarine muds without modern compaction control. Those legacy deposits, combined with the city’s location less than 60 km from the Hikurangi subduction zone, create a dual risk: seismically-induced settlement and lateral spread displacement that can rupture buried services and undermine slab-on-grade floors. A stone column treatment programme addresses both mechanisms by densifying the granular interbeds and providing vertical drainage paths that dissipate pore pressure before it can trigger flow failure. Without this intervention, differential settlements of 100–200 mm are plausible for a moderate design earthquake, leading to costly structural repairs and business interruption. The design must also account for post-earthquake reconsolidation settlement in the silt layers, which is why the treatment depth is often extended beyond the purely liquefiable zone. By integrating the ground improvement scheme early in the structural design phase, the development team gains certainty on foundation type, floor slab articulation, and service entry details — all of which carry significant cost implications for a project on the Poverty Bay flats.
Our services
A stone column design package in Gisborne typically bundles several complementary investigations and analyses to produce a solid, consent-ready submission. The following services are delivered as an integrated scope.
Liquefaction Triggering Analysis
Site-specific assessment using CPT data and NZGS Module 4 procedures to map the factor of safety against liquefaction across the site and define treatment zones.
Grid Design & Settlement Modelling
Finite-element settlement analysis that predicts post-treatment vertical strain under static and seismic loads, including reconsolidation of interbedded silts.
Construction Specification & QA/QC
Preparation of technical specifications, installation monitoring protocols, and post-treatment verification by CPT or zone load testing in accordance with NZGS guidelines.
Value Engineering Comparisons
Cost–benefit comparison between stone columns and alternative ground improvement methods such as rigid inclusions or driven timber piles, tailored to Gisborne’s subsurface conditions.
Frequently asked questions
How much does a stone column design and verification package cost for a typical Gisborne site?
For a moderate commercial footprint, the combined design, specification, and post-treatment verification generally falls between NZ$2,600 and NZ$8,810, depending on the number of CPT soundings required and the complexity of the settlement model.
How deep do stone columns need to go in the Poverty Bay flats?
Column depth is dictated by the base of liquefiable material, which in Gisborne commonly lies between 6 m and 14 m. We extend the treatment into the underlying non-liquefiable stratum by at least 0.5 m to prevent punching failure at the column toe.
Can stone columns be installed adjacent to existing buildings in central Gisborne?
Yes, bottom-feed vibro-replacement rigs can work within 1.5 m of existing structures when vibration monitoring is in place. A pre-condition survey and vibration limit of 5 mm/s PPV are typically specified to protect neighbouring assets.
What verification is required before council sign-off on the ground improvement?
Gisborne District Council generally requires post-treatment CPT soundings on a 5–8 m grid, with at least one zone load test per 2,000 m² of treated area, all documented in a completion report referencing the NZGS ground improvement guidelines. More info.
