Gisborne's expansion from a small coastal settlement into a regional centre pushed development onto the alluvial flats of the Waipaoa and Taruheru rivers. These areas are underlain by soft silts and variable fill, making compaction control a non-negotiable part of every earthmoving job. We run both Standard and Modified Proctor tests to determine the moisture-density relationship that local contractors need to hit their target relative compaction. The lab follows NZS 4402 and correlates results with the sand cone density test for field verification on residential slabs, and with CBR road design for pavement subgrades along routes like Lytton Road. Our team has tested material from dozens of Gisborne subdivisions and knows how the region's silty loams behave under different compactive efforts.
Compaction without a Proctor reference is just guesswork. Gisborne's silty soils can lose 30% of their bearing strength with a 2% moisture deviation from optimum.
Technical details of the service in Gisborne
Demonstration video
Local geotechnical conditions in Gisborne
The contrast between the Kaiti side of the river and the heavy pumice soils out towards Wainui Road illustrates why one Proctor curve never fits the whole city. Kaiti's weathered sandstone produces a gritty fill that compacts easily near optimum, while the Wainui silts can swing from too wet to too dry after a single afternoon of nor'easter drizzle. A contractor relying on a borrowed Proctor number from a different site often ends up over-compacting or leaving the fill soft. We see this frequently when imported fill comes from a quarry near Patutahi and gets placed on a site in Mangapapa: the lab curve shifts, and the field density fails. Getting a site-specific Proctor done early avoids costly re-rolling, failed council inspections, and delays that compound when the Tairawhiti weather window closes.
Our services
Our compaction testing services in Gisborne cover the full workflow from lab to field, ensuring the Proctor reference translates into verifiable density on the pad or in the trench.

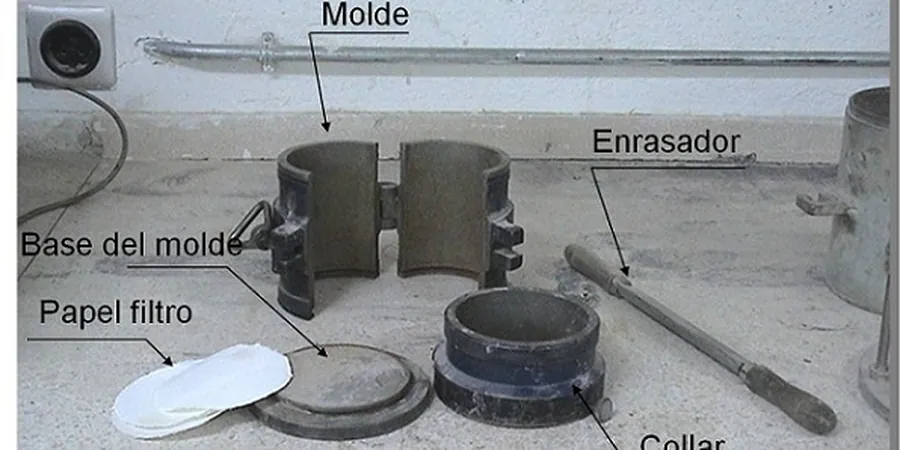

Standard Proctor Test
Determines the maximum dry density and optimum moisture content for lightly compacted fills, typical for residential foundations and landscaping in Gisborne's subdivision developments.
Modified Proctor Test
Applies higher compactive energy to simulate heavy rollers on commercial earthworks, road subgrades, and structural fill under raft slabs in the city's industrial zones.
Field Density Correlation
Pairs the Proctor curve with sand cone or nuclear gauge readings to calculate relative compaction, the key metric for council sign-off in Tairāwhiti.
Material Suitability Screening
Evaluates imported or site-won fill before placement, checking gradation and plasticity to confirm the material can achieve the specified compaction with standard equipment.
Frequently asked questions
What does a Proctor test cost in Gisborne?
A Standard Proctor test typically runs between NZ$190 and NZ$280, while a Modified Proctor ranges from NZ$280 to NZ$390 depending on the number of points on the curve and whether we need to process the sample beforehand. We quote a fixed price once we have the soil description.
When do we need Modified Proctor instead of Standard?
Modified Proctor is specified for structural fill under commercial slabs, road subgrades, and any earthworks where heavy compaction plant will be used. Standard Proctor applies to lightly loaded residential foundations, trench backfill, and landscaping where smaller compaction equipment is typical.
How long does it take to get the Proctor result?
A single-point Proctor for a known material can be turned around in one working day. A full five-point curve needed for a new borrow source usually takes two to three days, accounting for oven drying and precise moisture staging.
Does the council accept your Proctor certificates in Gisborne?
Yes. We operate an IANZ-accredited lab and our reports meet the requirements of Gisborne District Council for building consent earthworks inspections. The certificate shows maximum dry density, optimum moisture content, and the compaction curve, referenced to NZS 4402.
